2021-2026 Kawasaki KLX140R 58mm Cylinder Piston Gasket Kit 98111-0024 11061-0863

Cylinder Piston Gasket Top End Rebuild Kit 58mm For Kawasaki KLX140 KLX 150 2008-2026

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 58 mm x 54.4 mm stroke, 14 mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4-Stroke
Displacement: 149cc
Bore Type: Standard Bore
Bore diameter: 58 mm
Stroke: 54.4 mm
Pin diameter: 14 mm
Pin Overall Length: 34 mm

Replacement Part Number:
Cylinder: 98111-0024, 98111-0035, 98111-0040
Cylinder Base Gasket: 11061-0863
Cylinder Head Gasket: 11004-0751
Piston: 13001-0769
Pin, Piston: 13002-1126
Piston Ring Set (Std): 13008-0038
Circlips, piston (2): 92033-1287, 92033-0796

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Kawasaki KLX140 2008-2020
Fit for Kawasaki KLX140L 2008-2022
Fit for Kawasaki KLX140G 2017-2020
Fit for Kawasaki KLX140R 2021-2026
Fit for Kawasaki KLX140R F 2021-2026
Fit for Kawasaki KLX140R L 2021-2026
Fit for Kawasaki KLX150BF 2015-2022
Fit for Kawasaki KLX150L 2014-2024

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

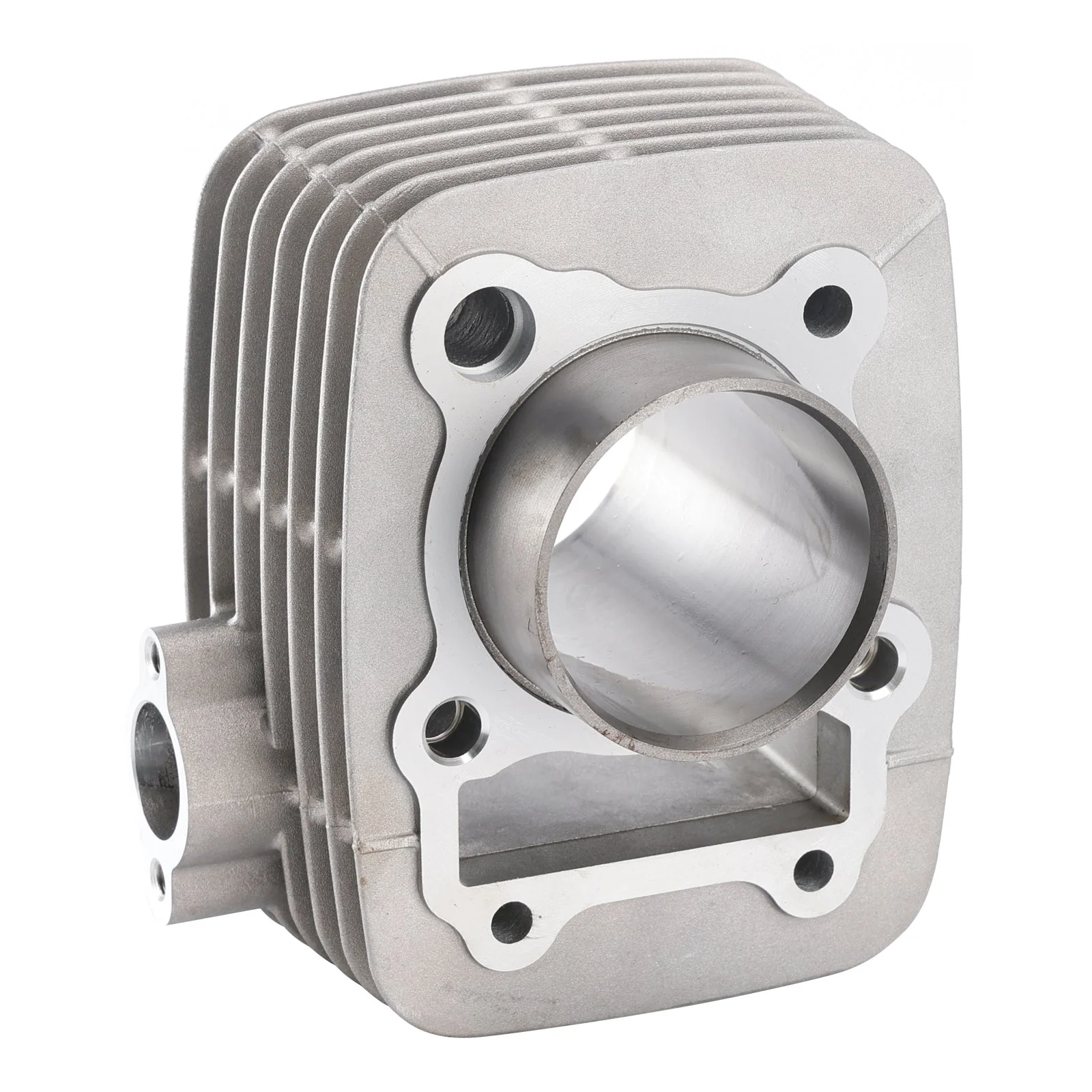

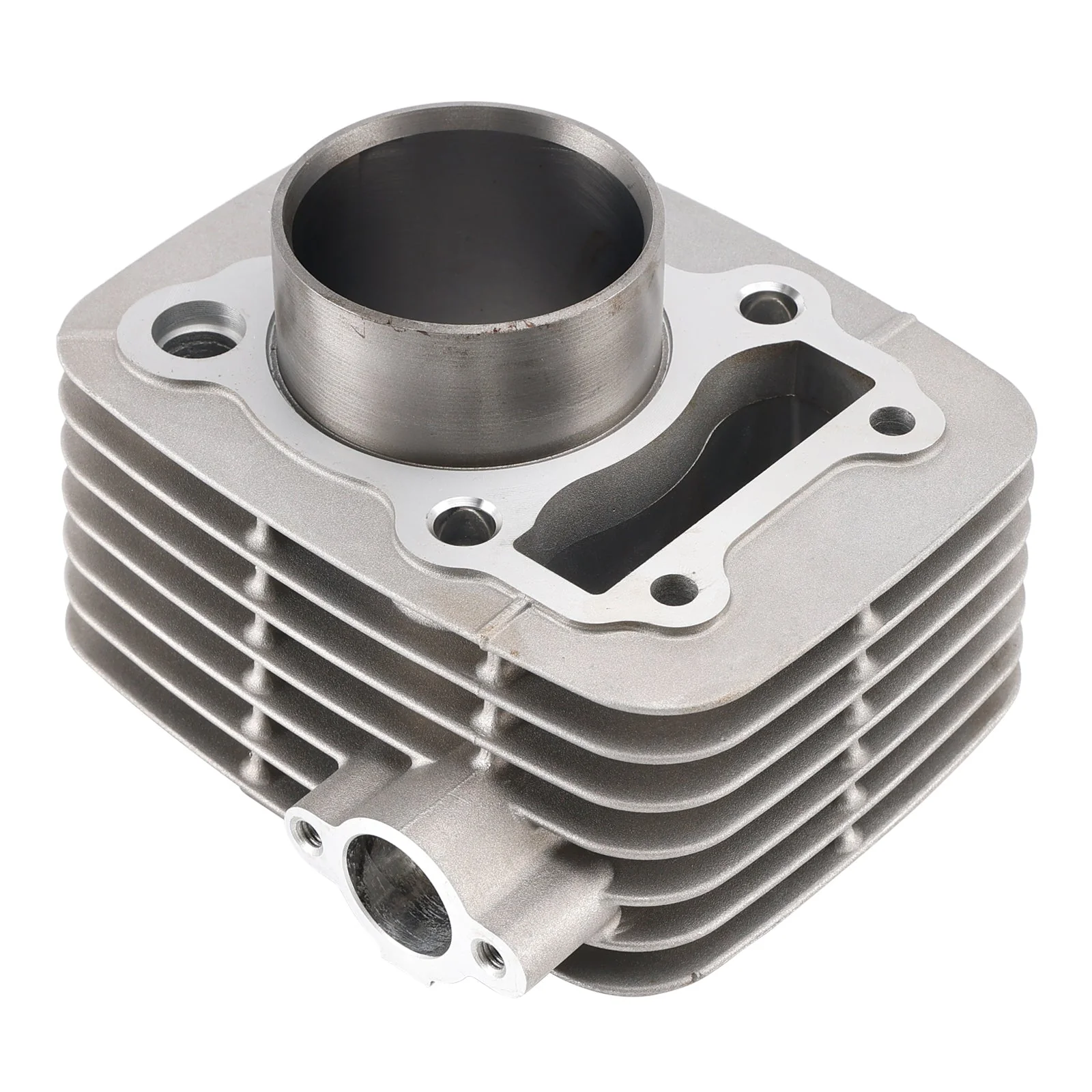

1x 58mm Cylinder

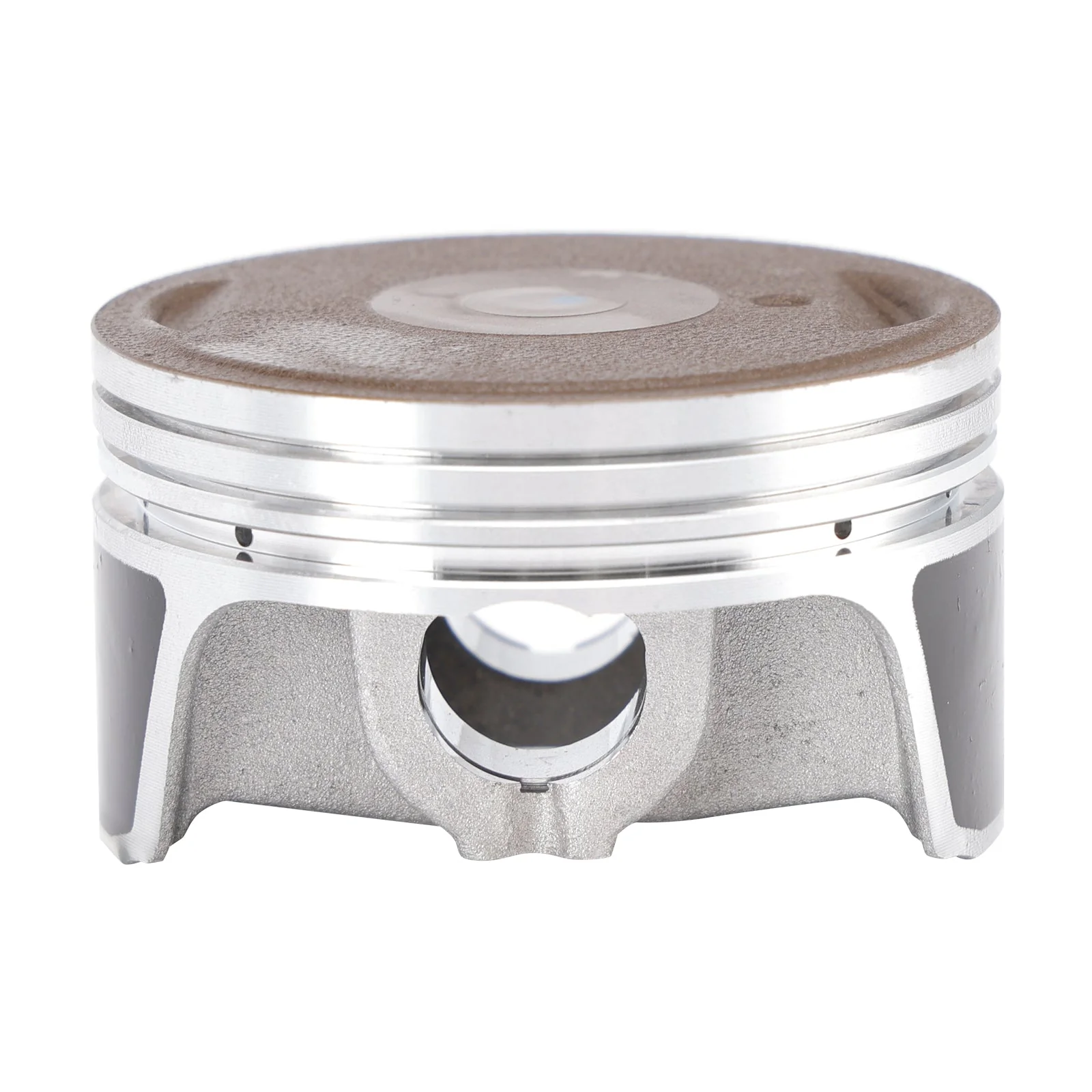

1x Piston
1x Piston Ring Set
1x 14mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
