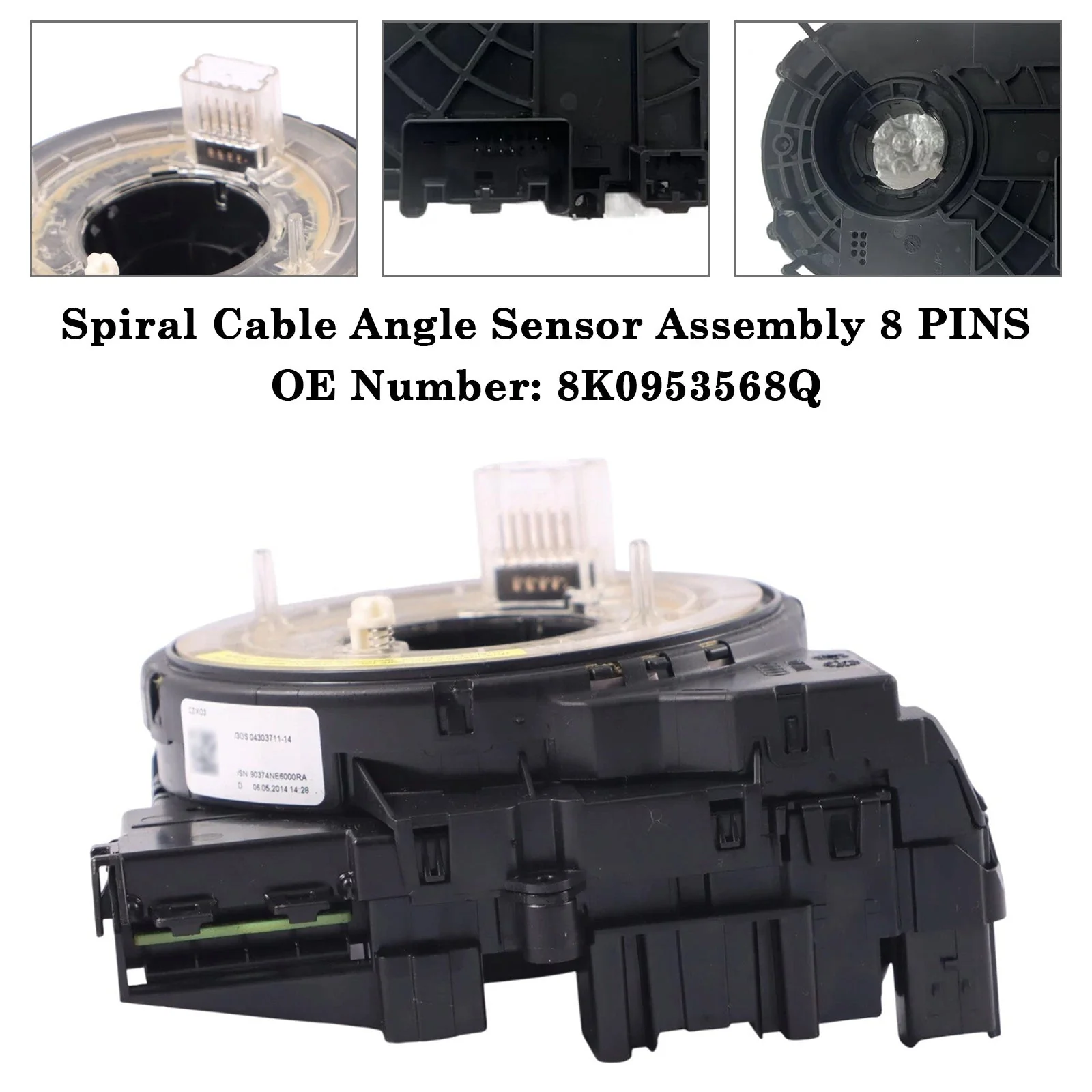

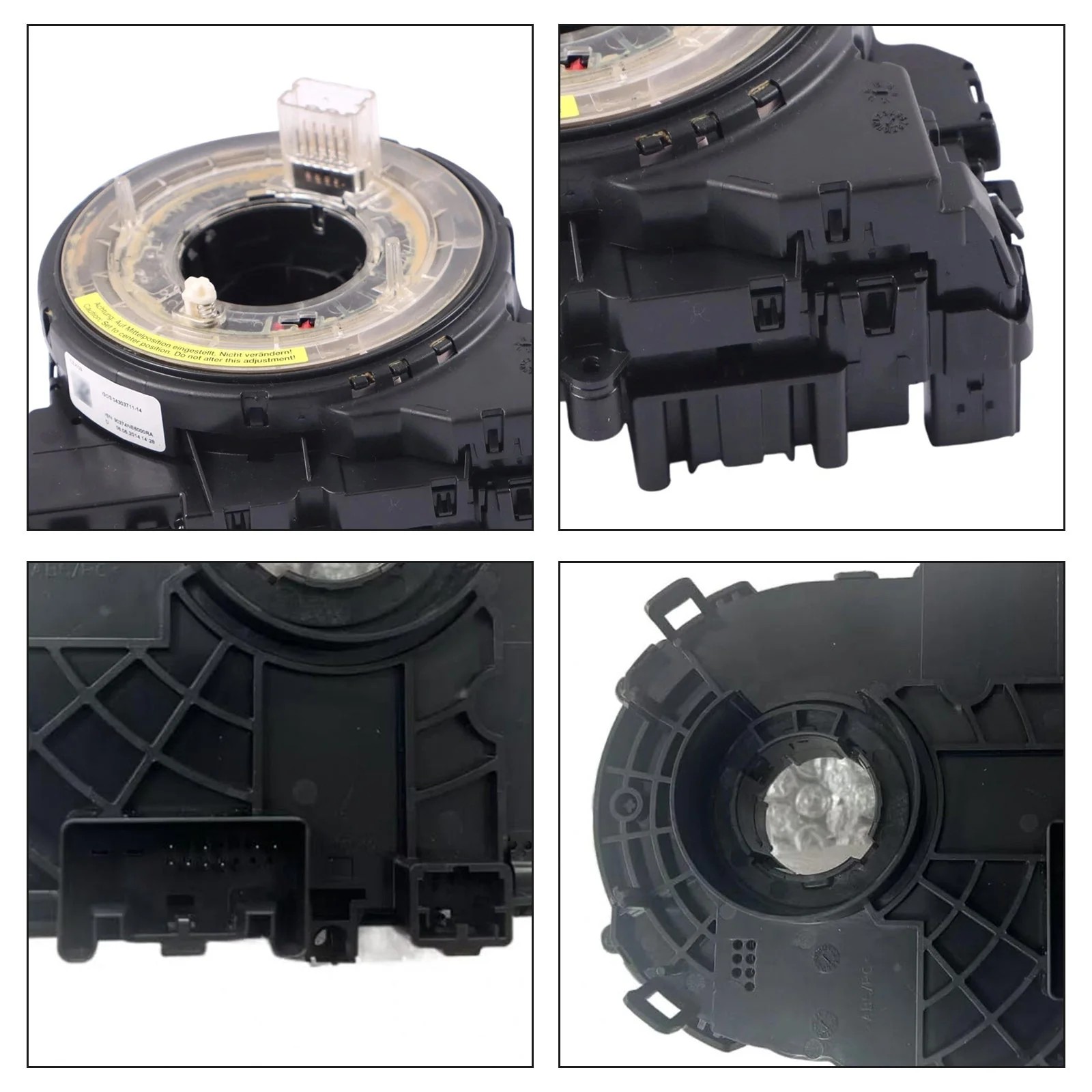

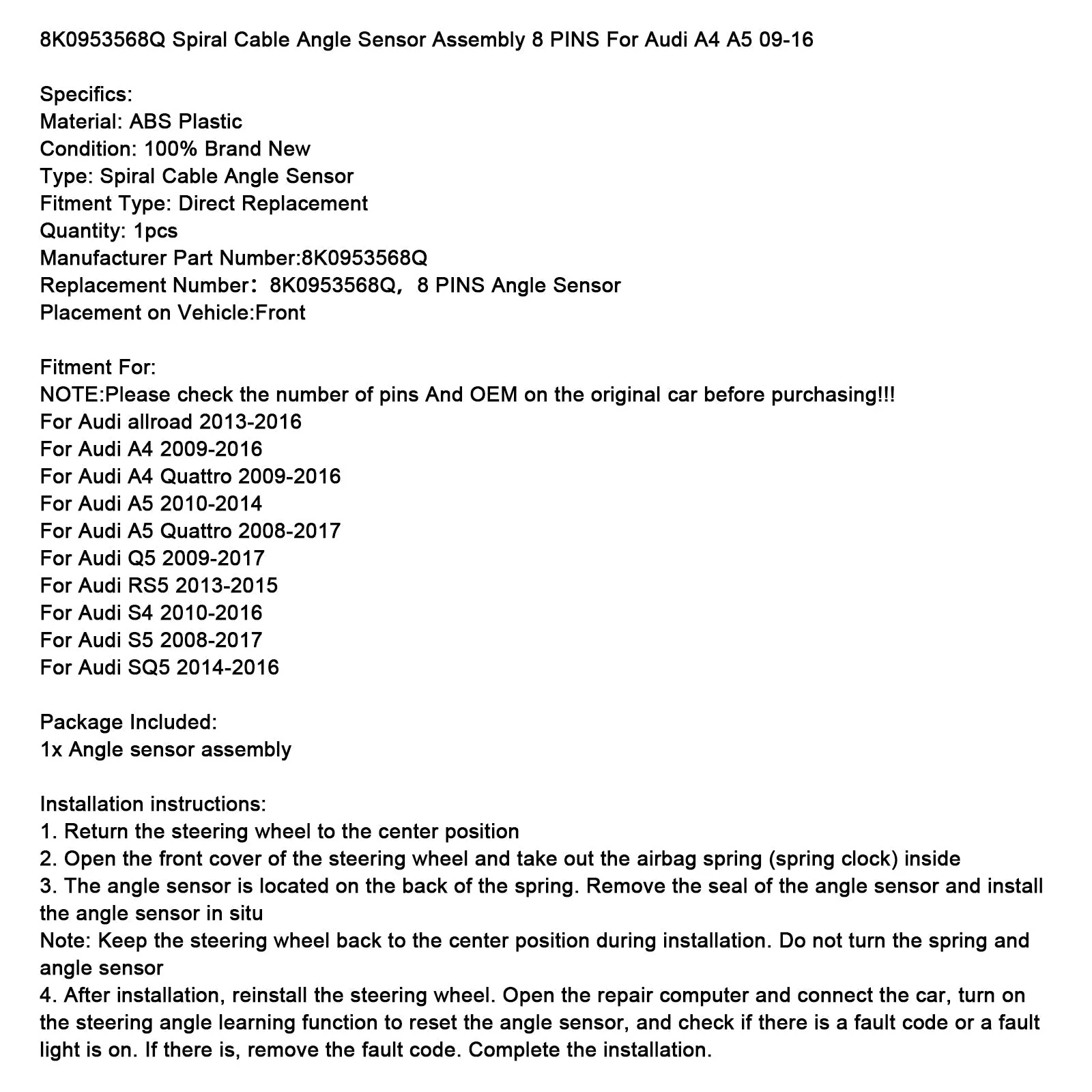

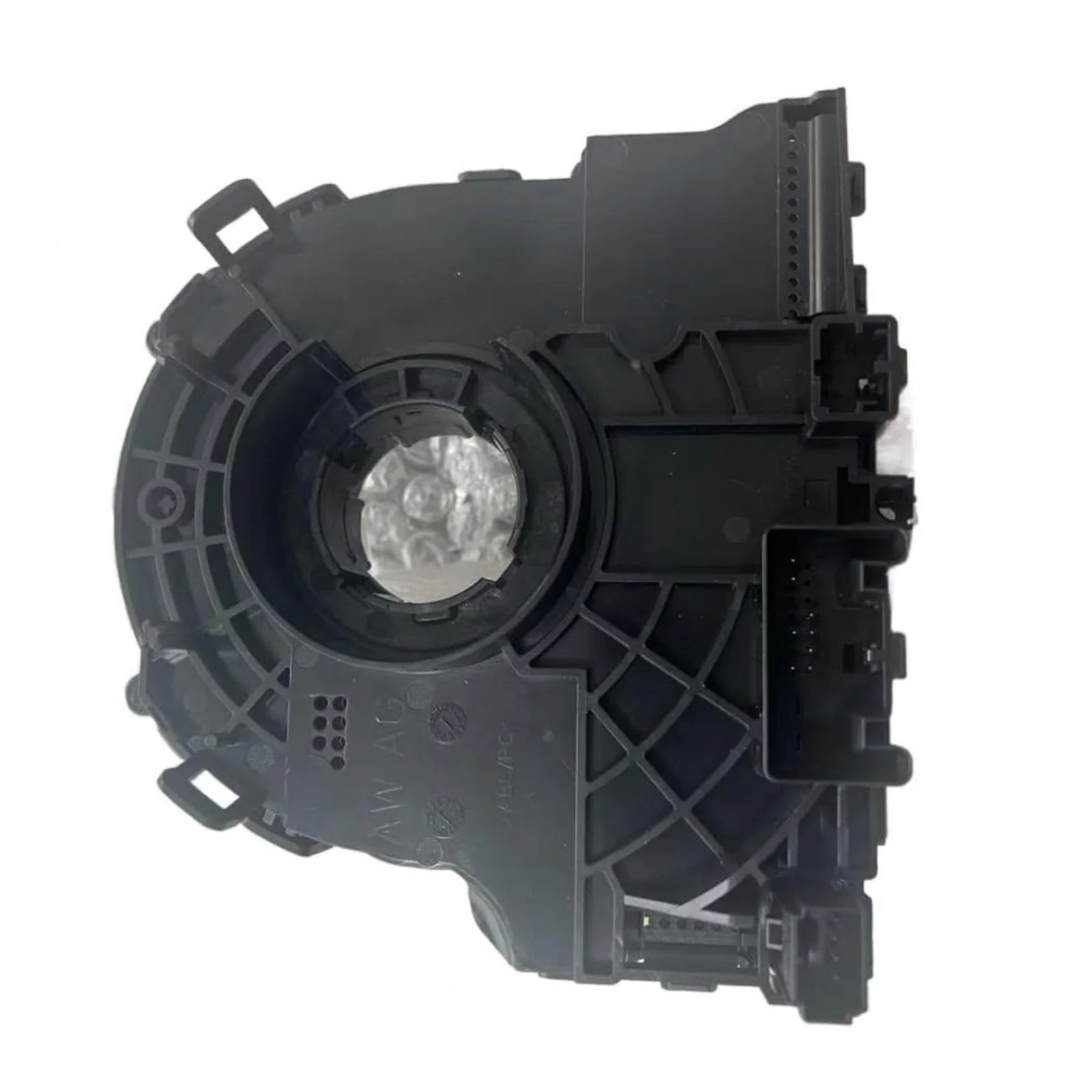

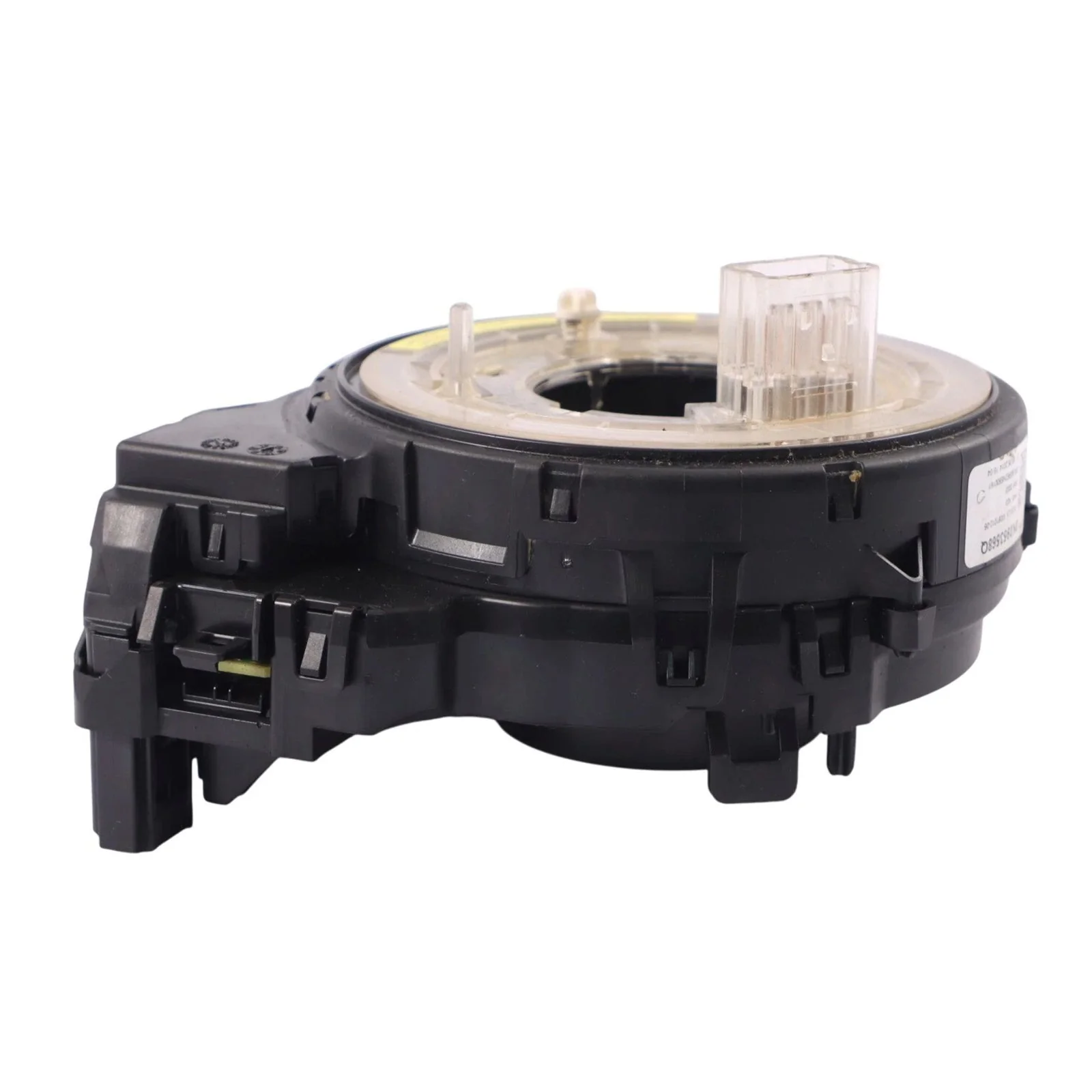

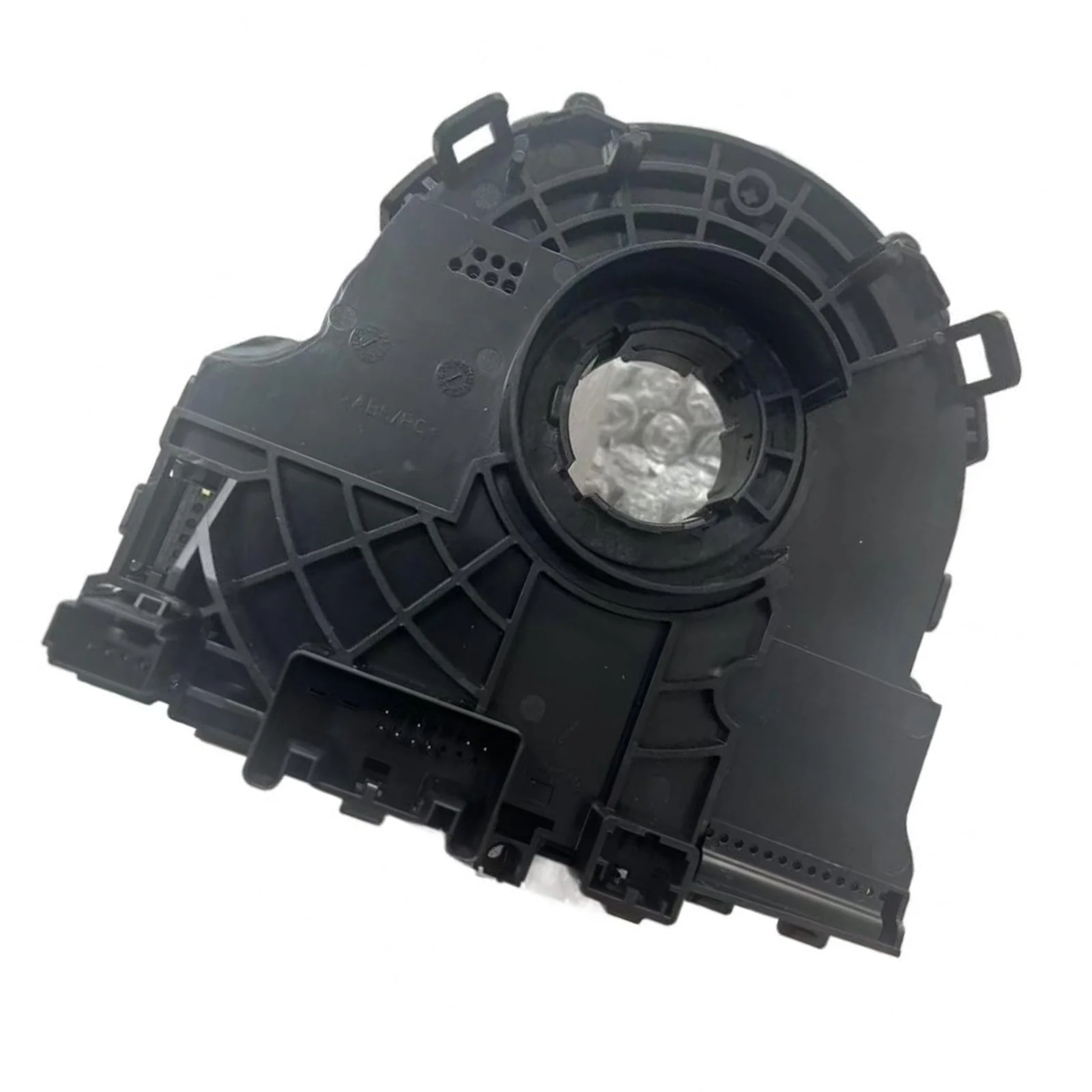

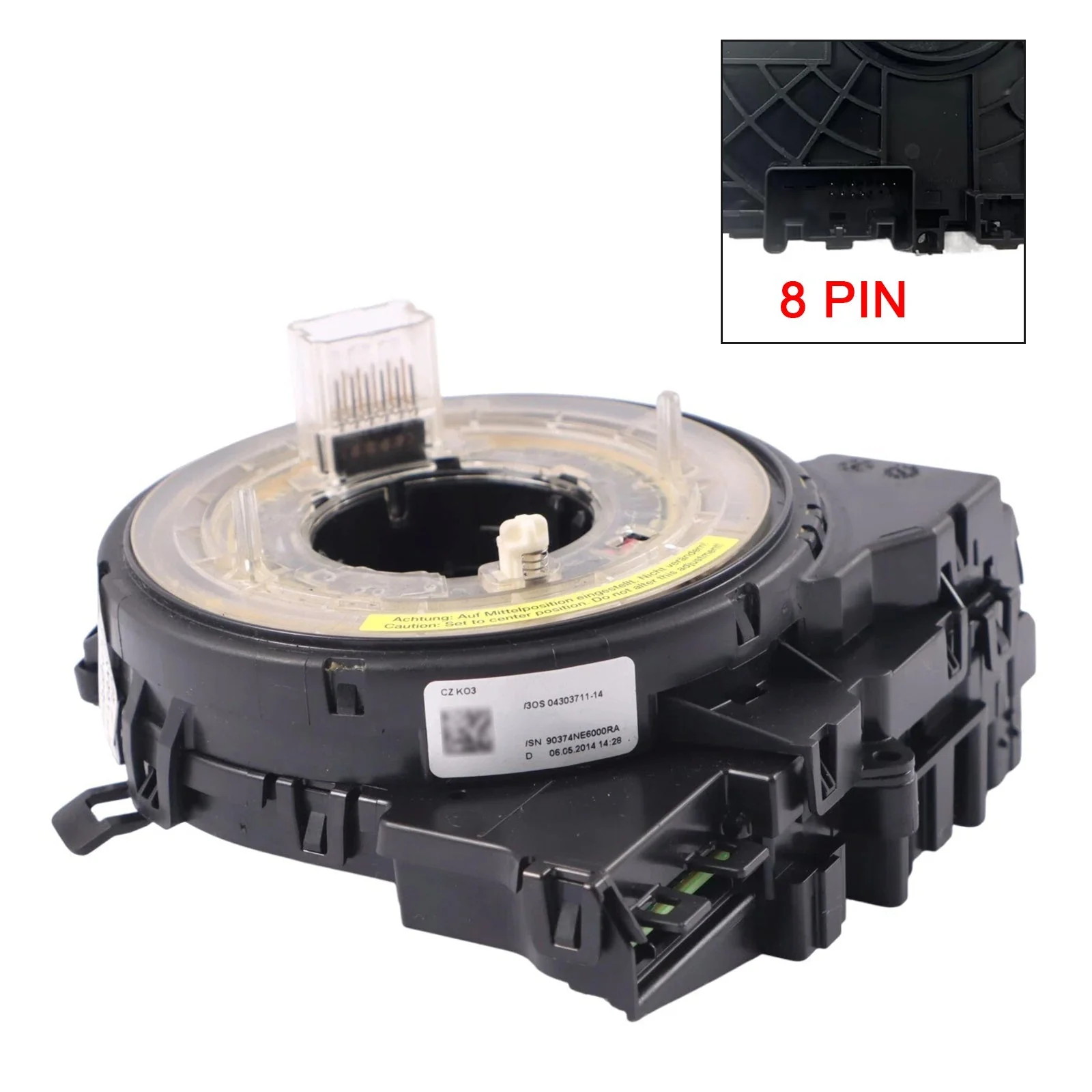

2013-2015 Audi RS5 Spiral Cable Angle Sensor Assembly 8 PINS 8K0953568Q

8K0953568Q Spiral Cable Angle Sensor Assembly 8 PINS For Audi A4 A5 2009-2016

Specifics:
Material: ABS Plastic
Condition: 100% Brand New
Type: Spiral Cable Angle Sensor
Fitment Type: Direct Replacement
Quantity: 1pcs
Manufacturer Part Number:8K0953568Q
Replacement Number：8K0953568Q，8 PINS Angle Sensor
Placement on Vehicle:Front

Fitment For:
NOTE:Please check the number of pins And OEM on the original car before purchasing!!!
For Audi allroad 2013-2016
For Audi A4 2009-2016
For Audi A4 Quattro 2009-2016
For Audi A5 2010-2014
For Audi A5 Quattro 2008-2017
For Audi Q5 2009-2017
For Audi RS5 2013-2015
For Audi S4 2010-2016
For Audi S5 2008-2017
For Audi SQ5 2014-2016

Package Included:
1x Angle sensor assembly

Installation instructions:
1. Return the steering wheel to the center position
2. Open the front cover of the steering wheel and take out the airbag spring (spring clock) inside
3. The angle sensor is located on the back of the spring. Remove the seal of the angle sensor and install the angle sensor in situ
Note: Keep the steering wheel back to the center position during installation. Do not turn the spring and angle sensor
4. After installation, reinstall the steering wheel. Open the repair computer and connect the car, turn on the steering angle learning function to reset the angle sensor, and check if there is a fault code or a fault light is on. If there is, remove the fault code. Complete the installation.
