2008-2016 300 EXC TOP END CYLINDER PISTON GASKET KIT 54830338300

72mm Cylinder Piston Gasket Top End Rebuild Kit For EXC / XC / XC-W 300 2008-2016

Features:
If your cylinder blows through, or a piston seizure has occurred, then this kit is exactly the right thing for you.

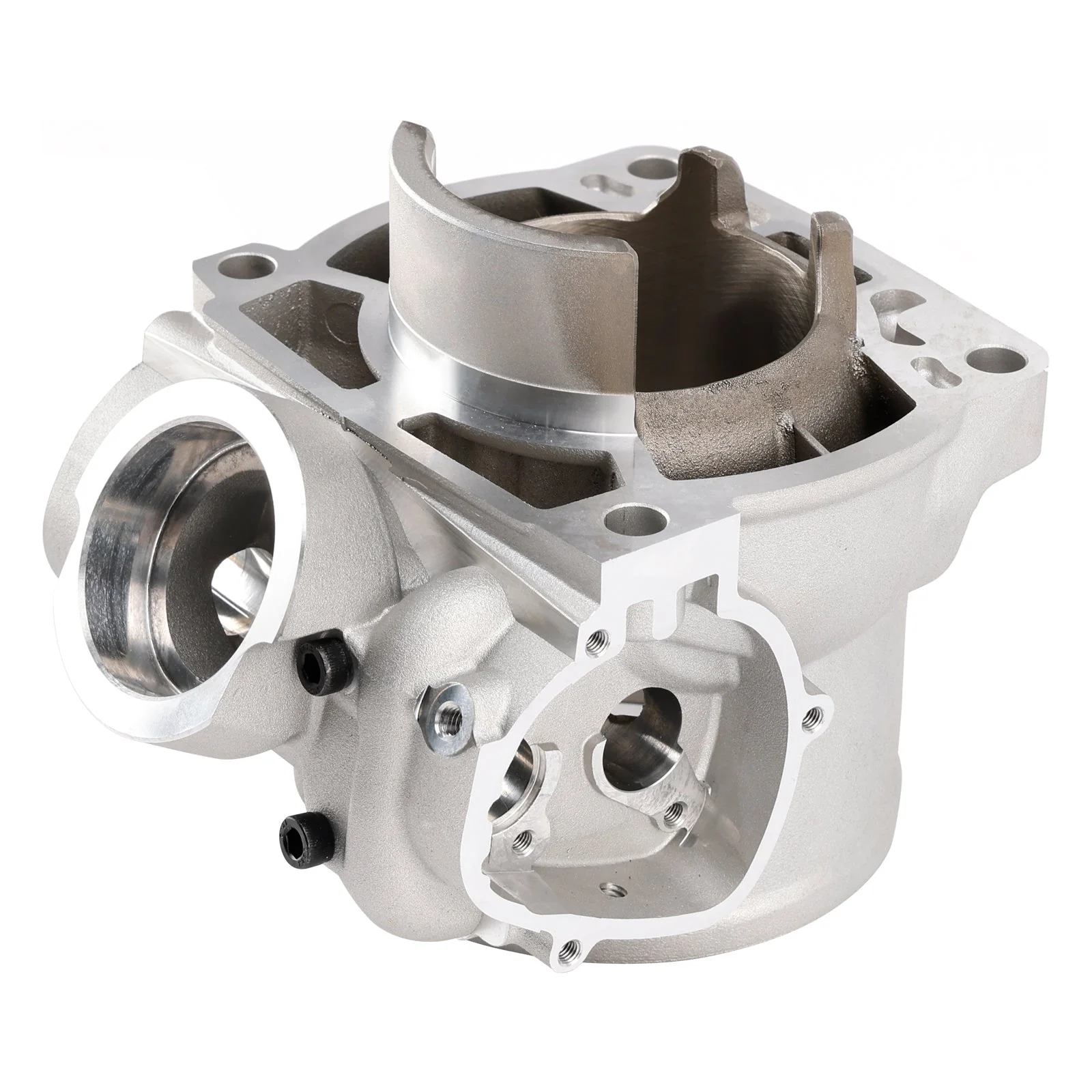

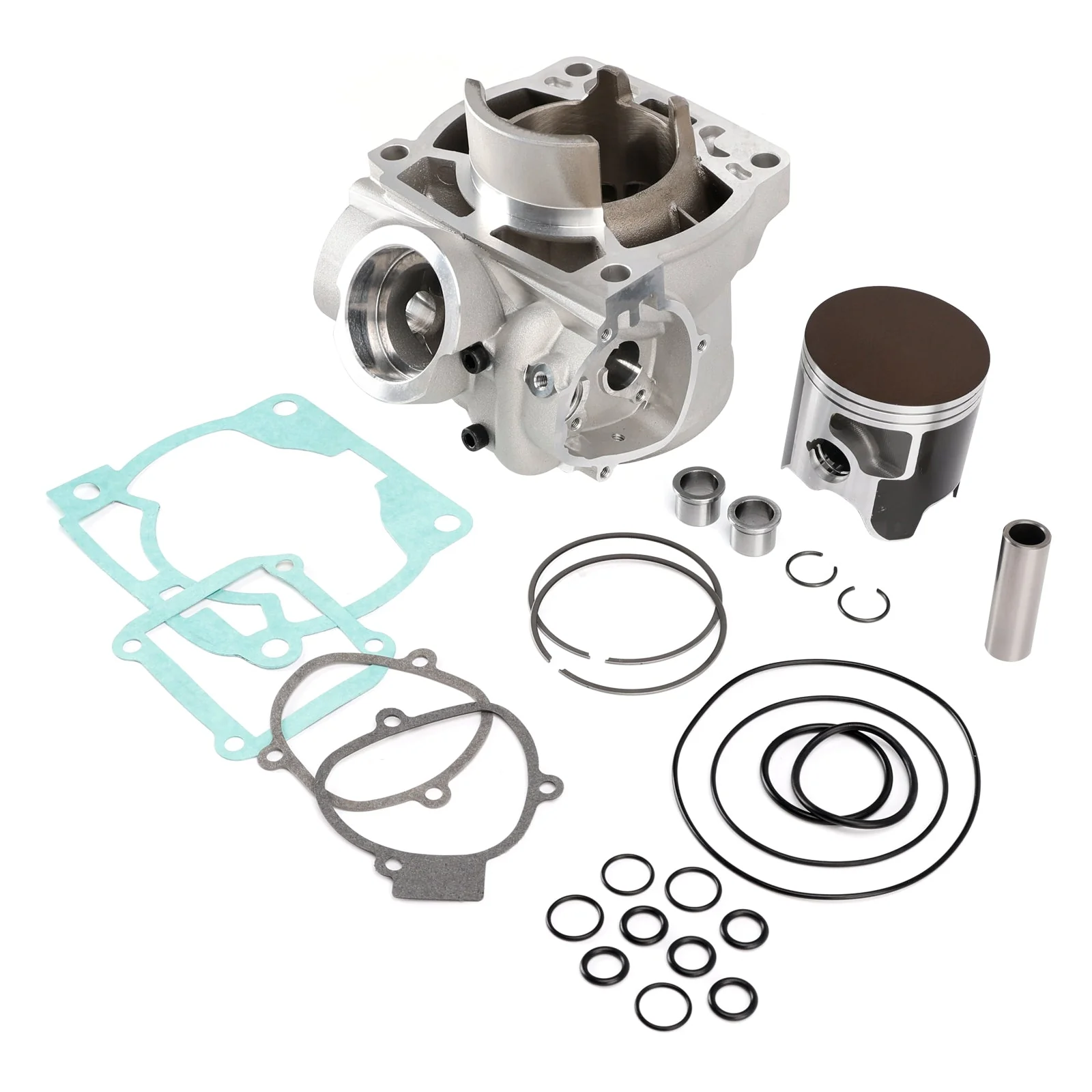

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

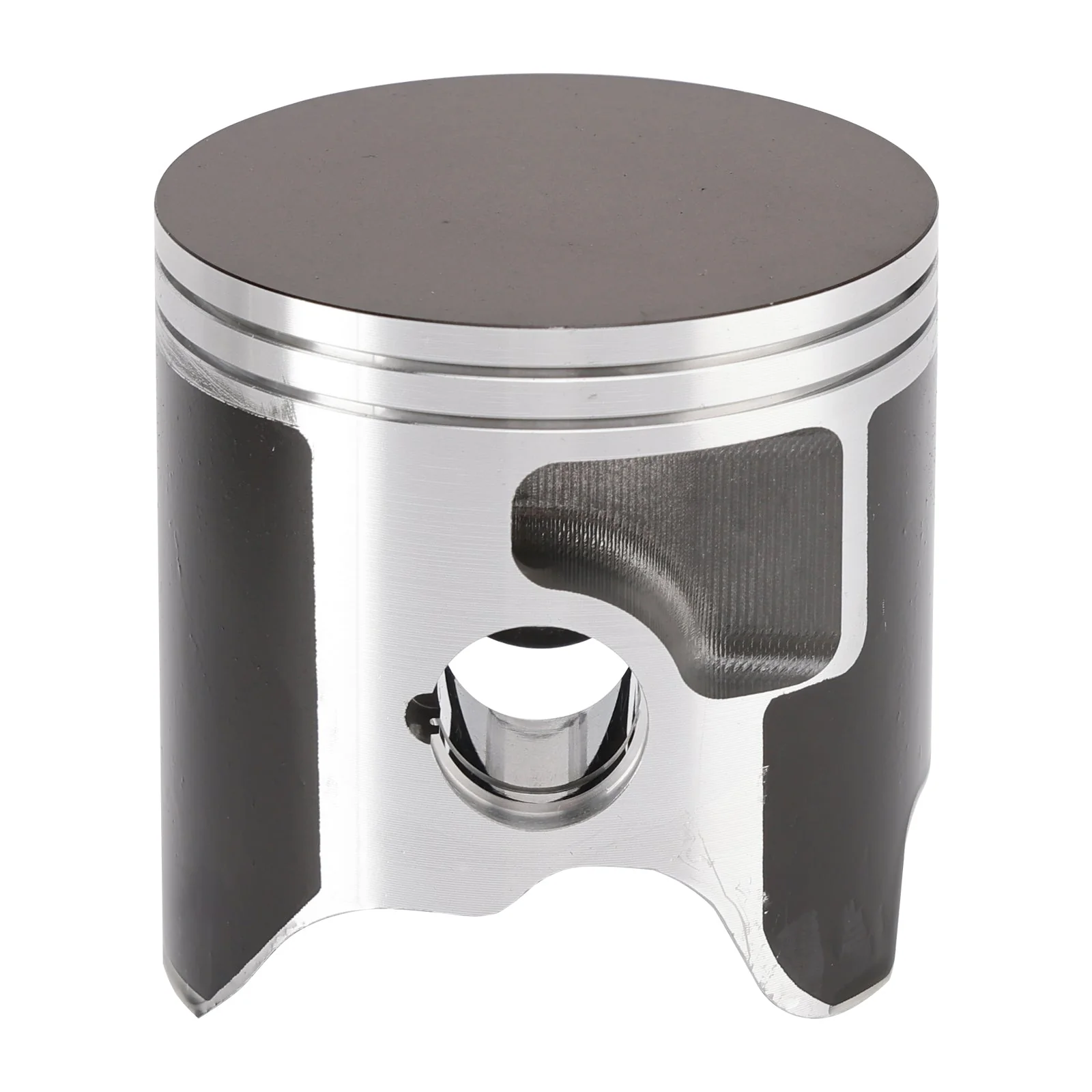

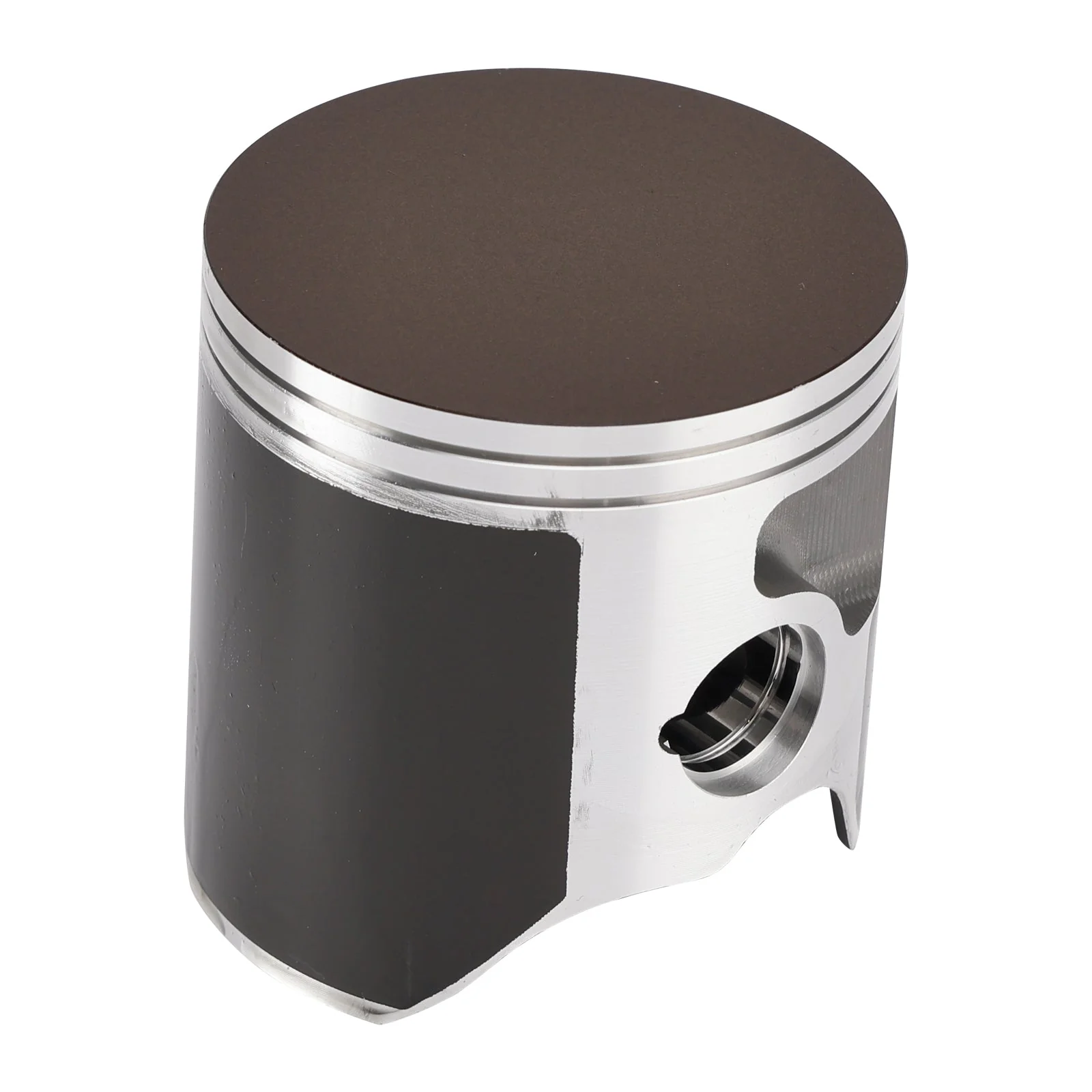

Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 72.0 mm, 18mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 300cc
Engine: 2-Stroke
Bore Type: Standard Bore
Bore diameter: STD 72mm
Pin diameter: 18mm
Pin Overall Length: 56mm

Replacement Part Number:
Cylinder and Piston: 54830338300
Piston Kit: 55630307100
Cylinder Base Gasket: 54830030002
Left Control Cover Gasket: 55537006000
Right Control Cover Gasket: 55537008000
Pin, Piston: 55430033000
Piston Ring Set (Std): 54830132000
Circlips, piston (2): 54830074000
Intake Manifold Gasket: 54830062200
Exhaust Gasket: 0770440030

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Only fits Carbureted Models with 2 Stroke engines.
Fit for 300 SX 2008-2016
Fit for 300 XC 2008-2016
Fit for 300 EXC 2008-2016
Fit for 300 EXC Six Days 2012-2016
Fit for 300 XC-W 2008-2016
Fit for 300 XC-W Six Days 2014-2016
Fit for Husaberg TE 300 2011-2014
Fit for Husqvarna TE 300 2014-2016

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

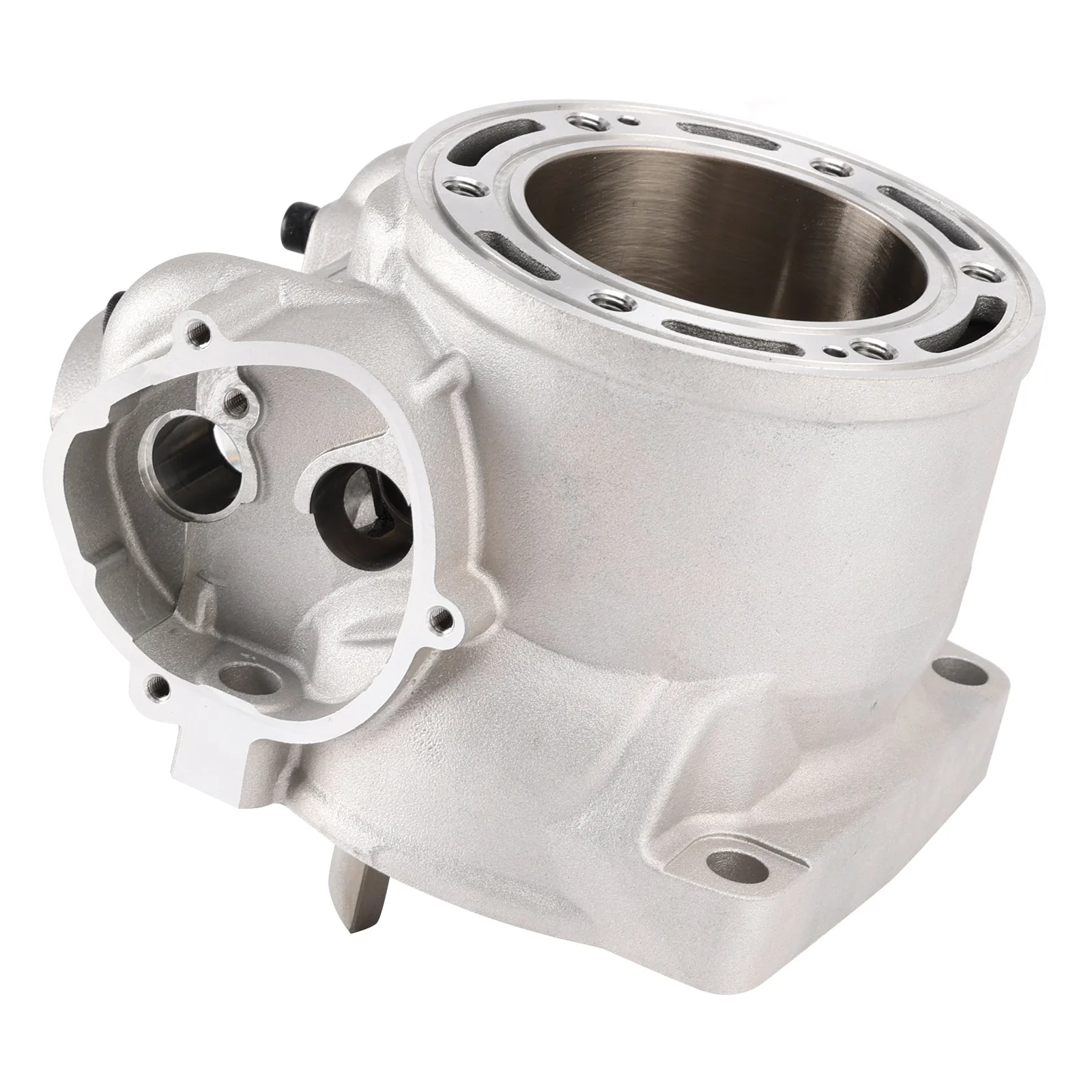

1x Cylinder
1x Piston

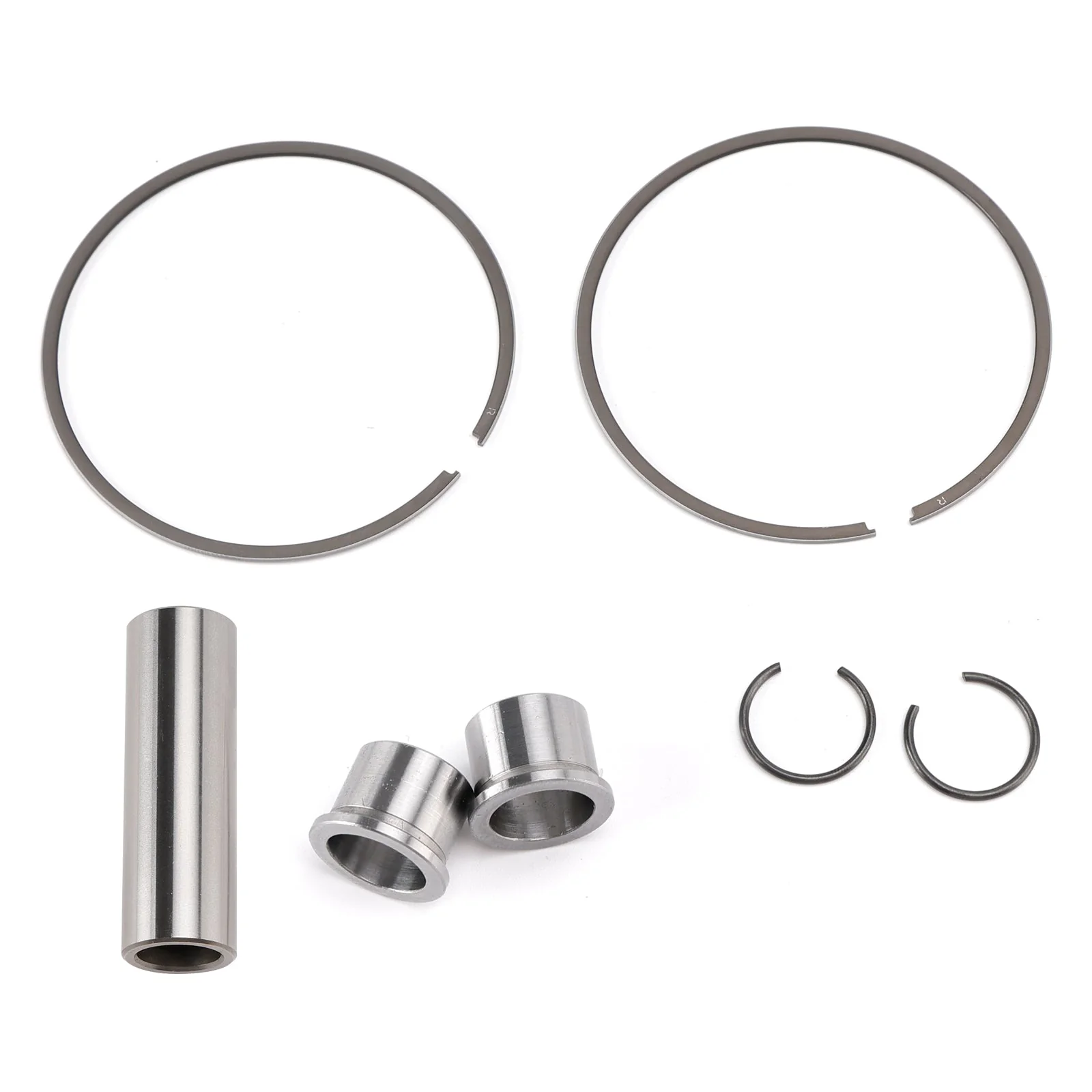

1x Piston Ring Set
1x 18mm Wristpin
1x Circlip(2)

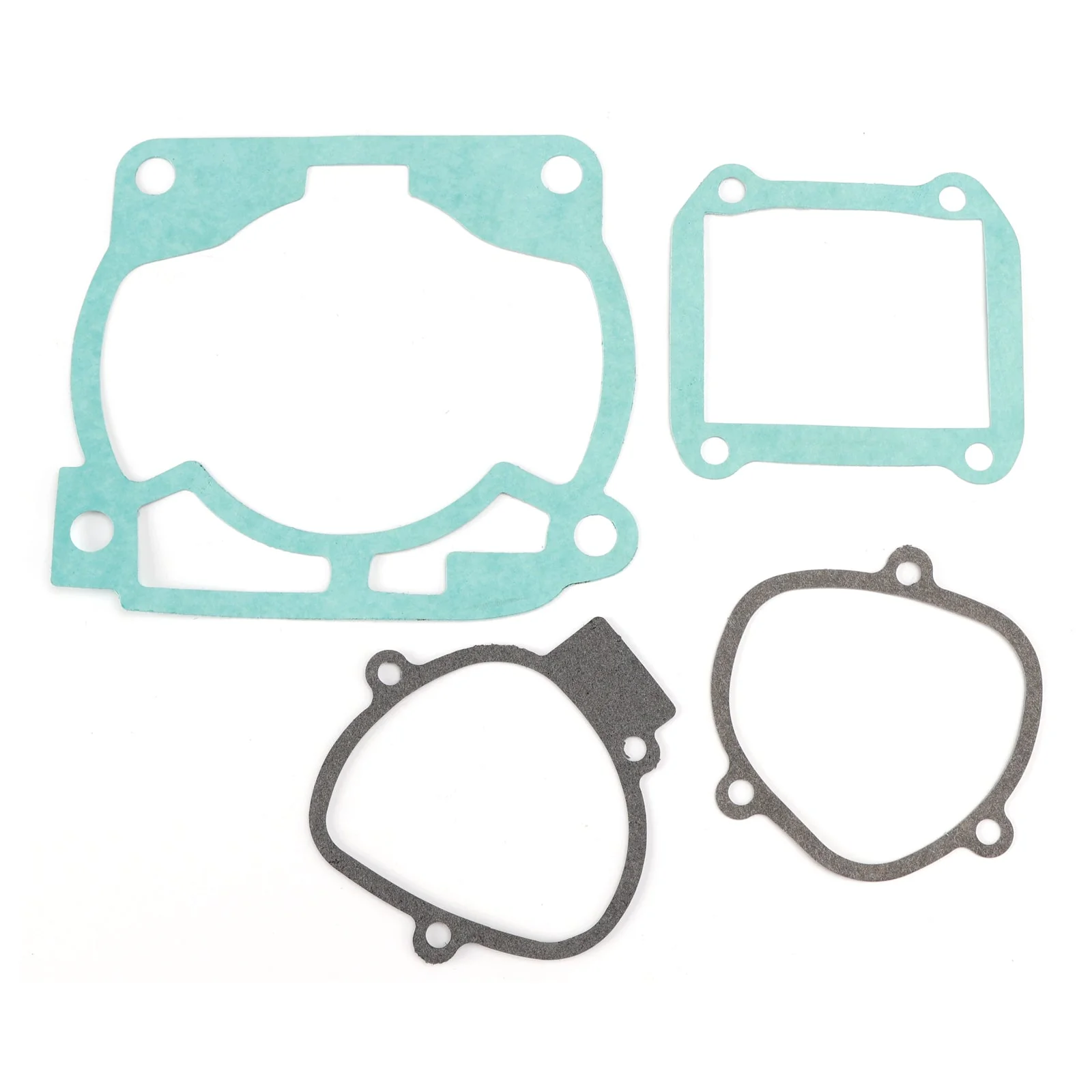

1x Cylinder Base Gasket
1x Intake Manifold Gasket
1x Left Control Cover Gasket
1x Right Control Cover Gasket
1x Intake Manifold Gasket
2x Exhaust Gasket:

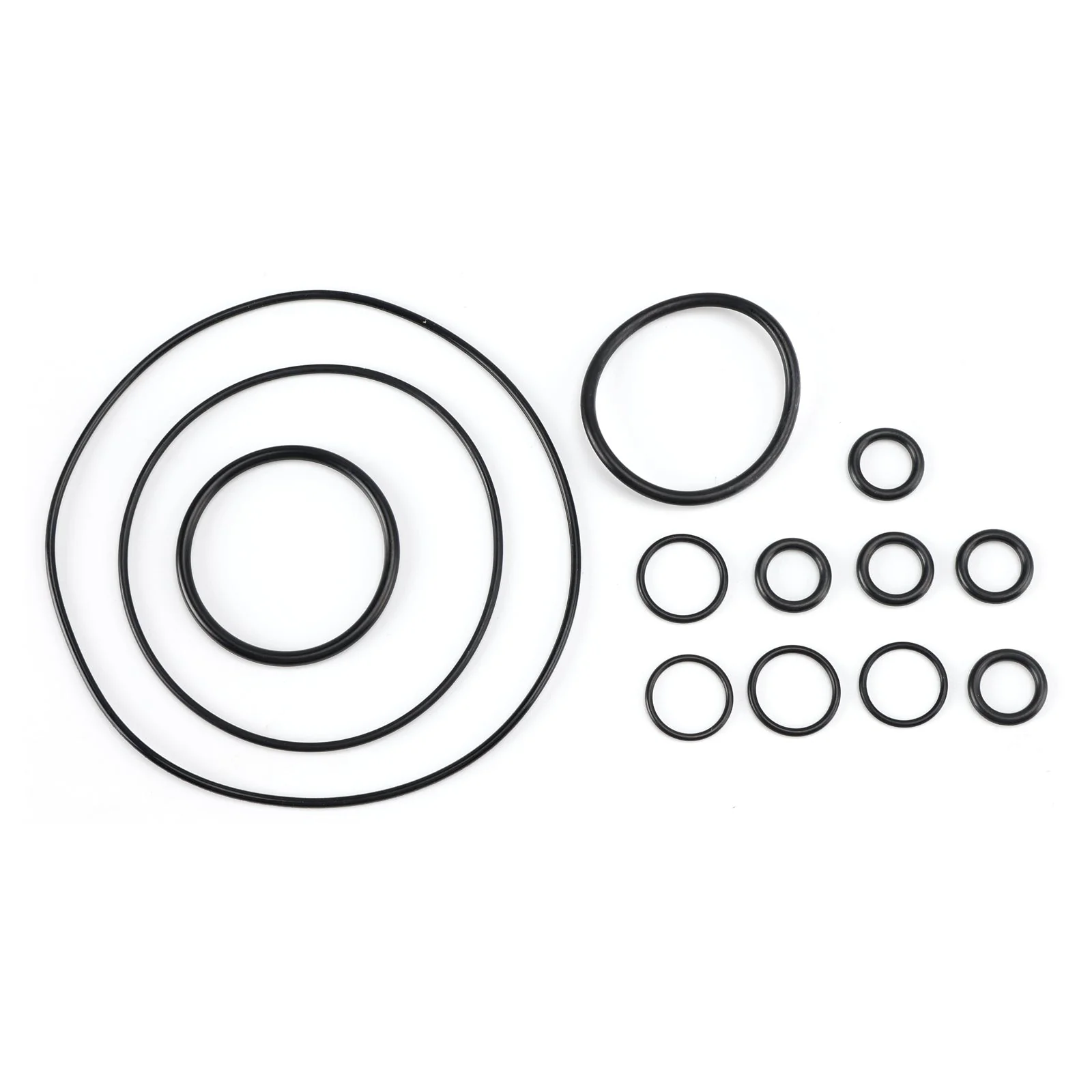

O-Ring Kit

(Comes exactly as pictured.)
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
